| Semicircular Probe Assembly | GP-11044 |

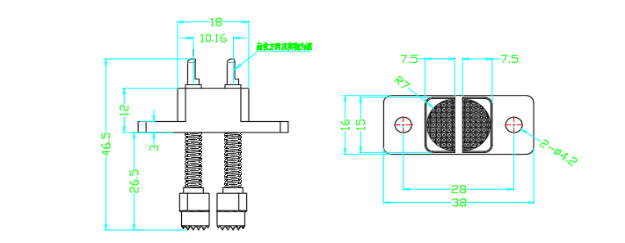

| Size: | 46.5*38*16mm |
| Main Material: | Beryllium copper |
| Applicable: | Square case power battery |
| Working Current: | 0～10A |
| Fixture Resistance: | ≤5mΩ |
| Temperature: | ≤100℃ |
| Elastic Parameters: | The pressure can reach 25 ~ 30N |
| when the current needle is compressed 5 mm. | |
| Plating: | Nickel plating on the whole surface of the probe, nickel plating on the tip of the current needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um. |
